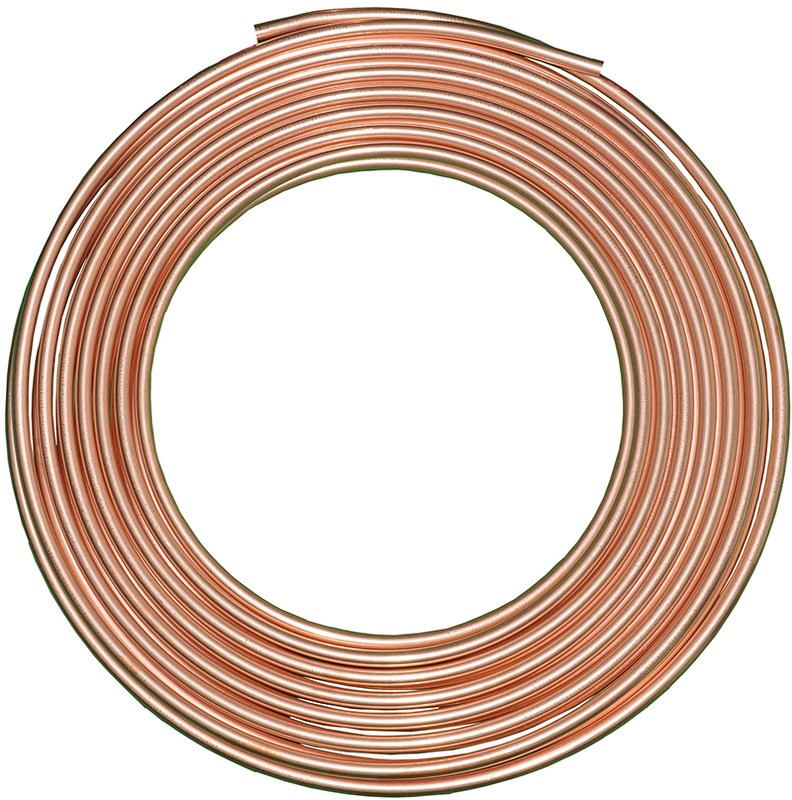

Seamless copper coil manufactured to ASTM B280 for air conditioning and refrigeration field service. It is supplied cleaned, dehydrated and capped so the line stays dry and free of contaminants until it is installed, which protects system performance and compressor life.

• Outside diameter: 3/16" (ACR tube is designated by actual outside diameter, not by nominal size)
• Wall thickness: 0.030"
• Inside diameter: 0.128"
• Weight: 0.0576 lb per foot
• Length: 50 Ft coil; ASTM B280 sets 50 Ft and 100 Ft as the standard coil lengths and JMF supplies this line in both
• C12200 phosphorus-deoxidized copper, 99.9% minimum copper content
• Cleaned, dehydrated and capped at both ends to the ASTM B280 interior cleanliness limit of 0.0035 g per square foot of interior surface
• Annealed (O60 temper) for easy field bending without kinking
• Manufacturer part: 6363203859802

Tip: Use a tubing cutter rather than a hacksaw for clean, square cuts, and re-cap or pinch the ends of a partial coil so the inside stays dry. Match the tube size and wall thickness to the operating pressure of the system and refrigerant you are working with.
