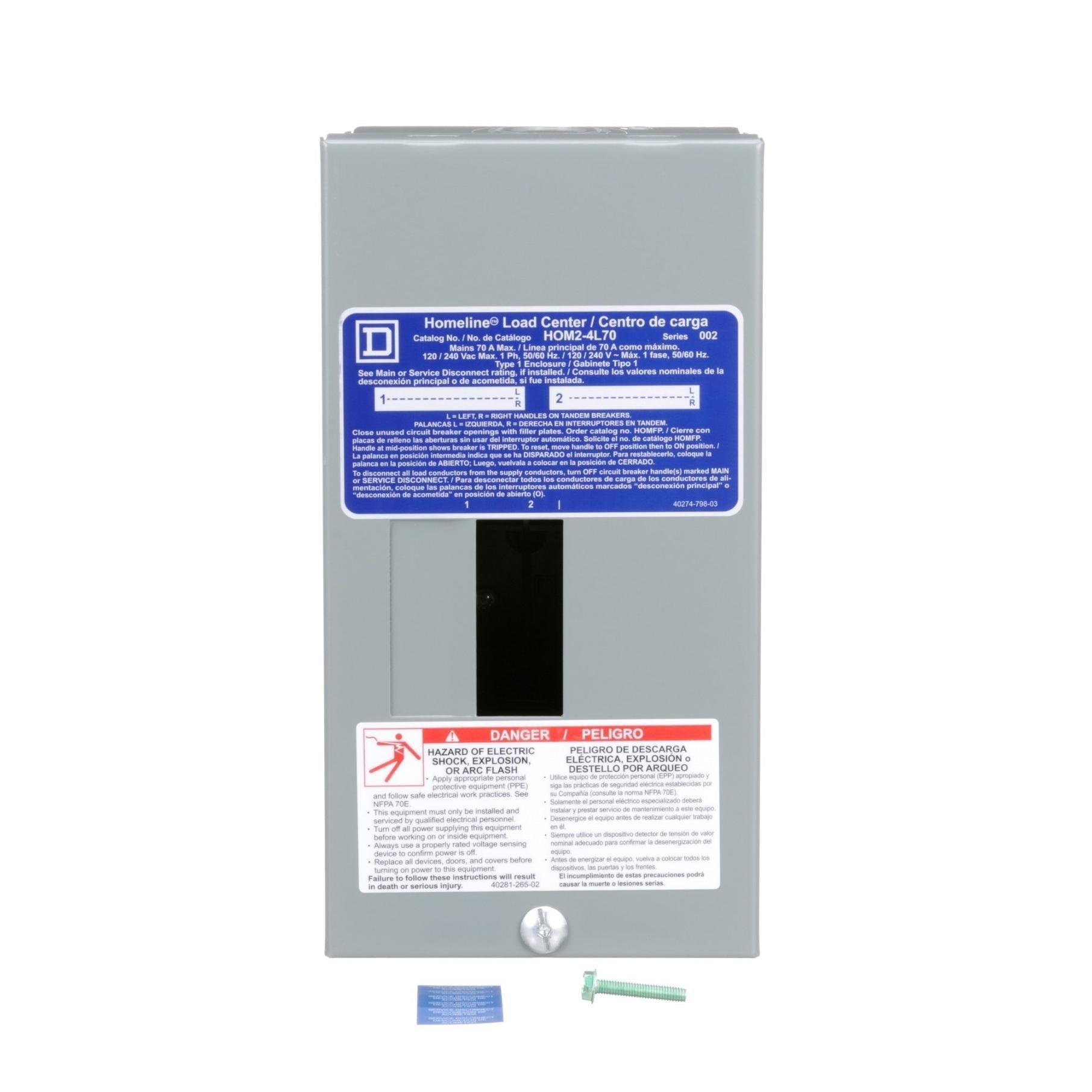

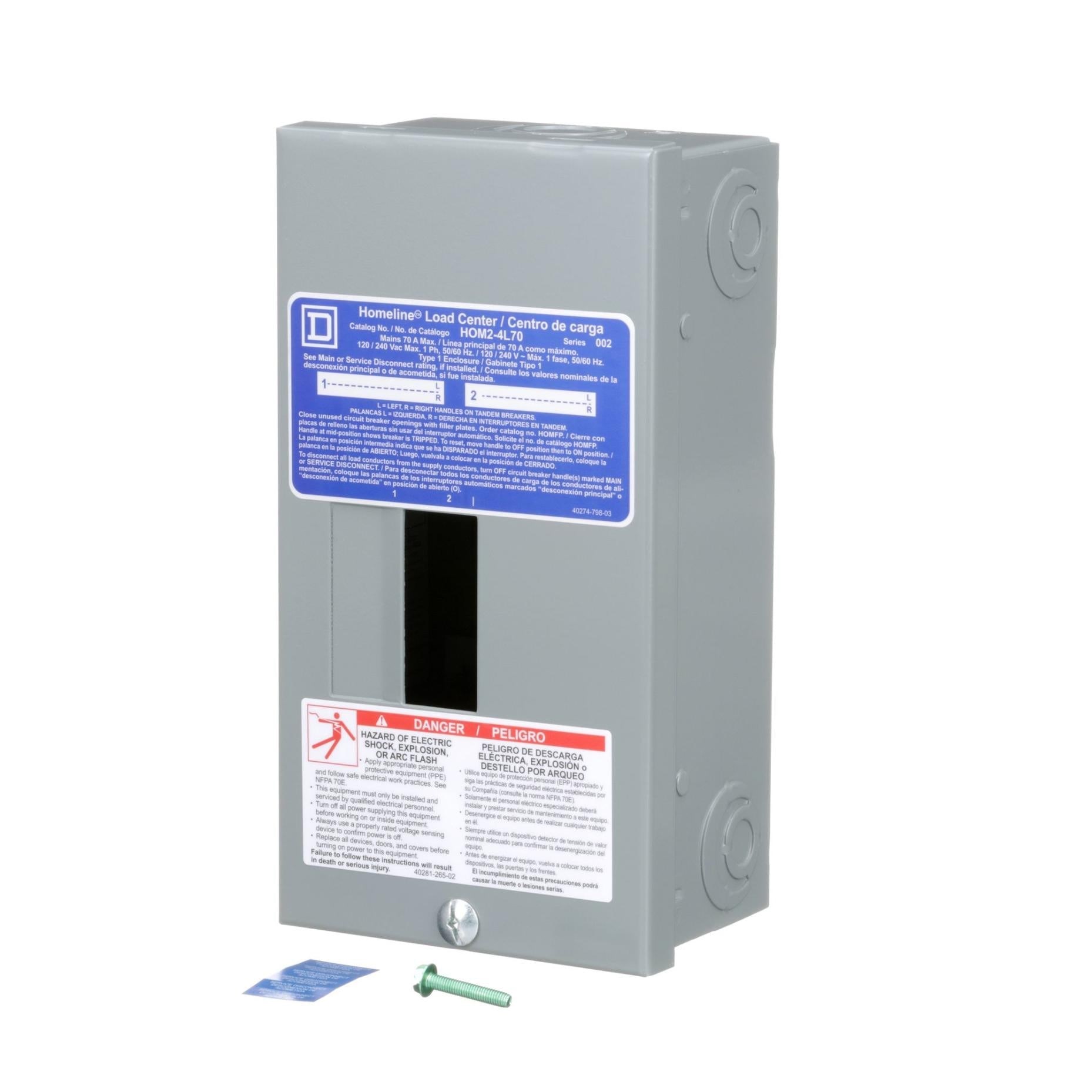

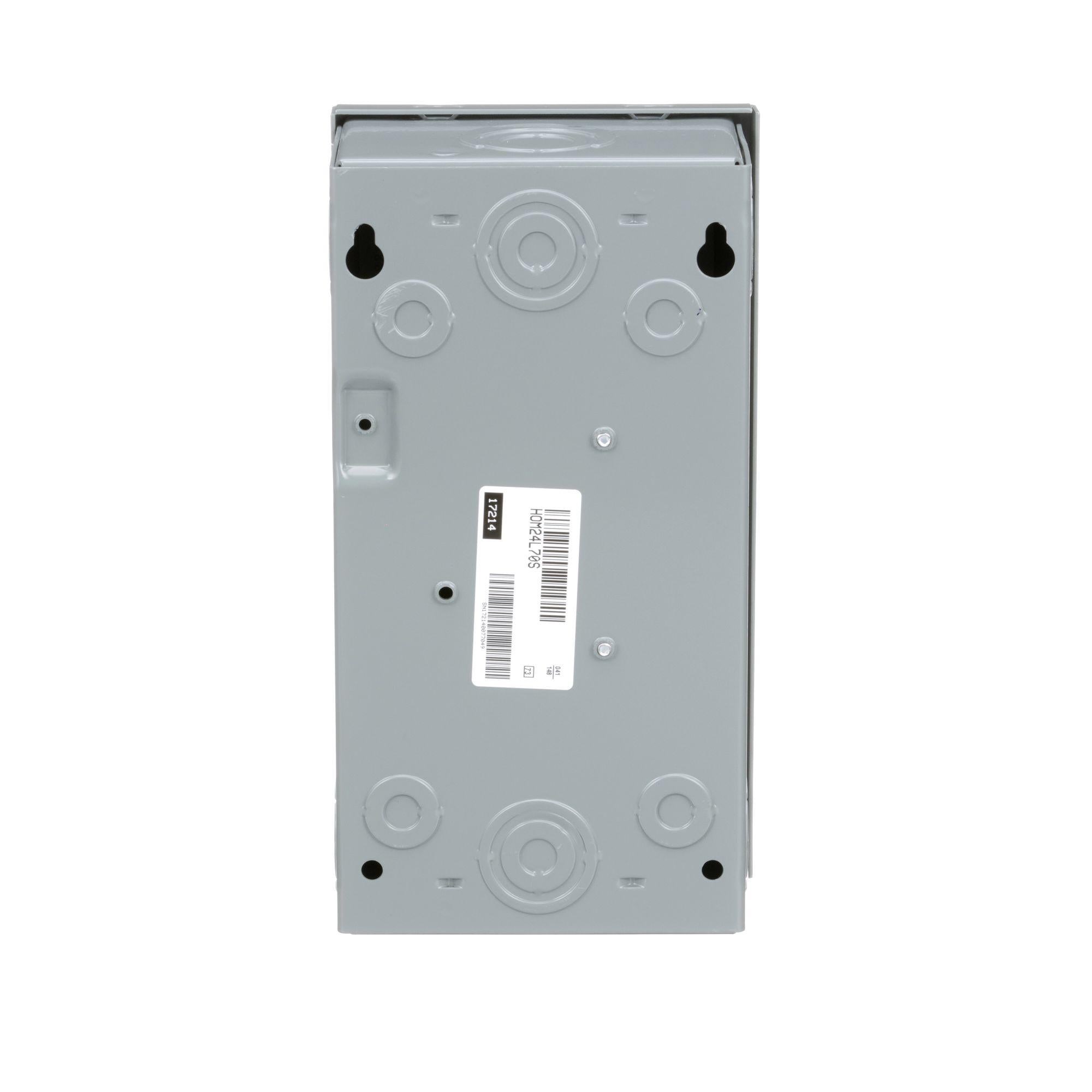

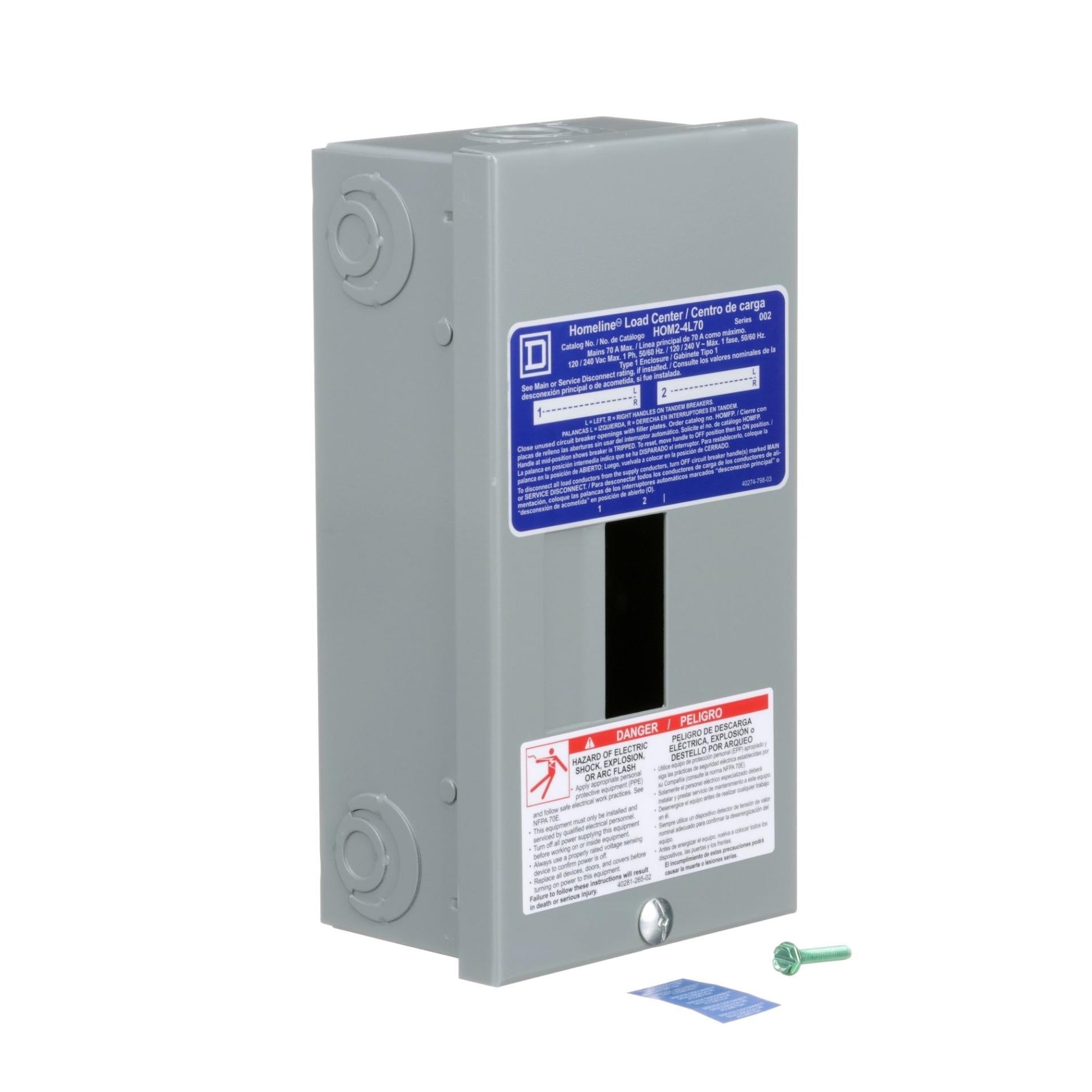

Compact Square D Homeline load center built for small subpanel jobs - workshops, garage circuits, hot tubs, AC condensers, well-pump panels, and accessory loads where you only need a few breakers but want a Square D bus and modern AFCI/GFCI compatibility.

• 70A, 120/240 VAC, single phase
• 2 spaces, 4 circuits max (with tandem breakers)
• 10,000 AIC short-circuit current rating
• Plug-on neutral compatible - no pigtail for AFCI/GFCI
• Accepts wire sizes 14-4 AWG copper or 12-3 AWG aluminum
• Tandems accepted in both spaces
• Tangential main service knockouts for top or bottom feed
• Surface-mount cover, NEMA 1 indoor enclosure

This trim: Surface-mount cover. Mounts directly to a finished wall or to a stud face in unfinished space - the standard pick for garages, basements, utility rooms, and workshops where appearance is secondary to a fast install.

Compatible with all Square D Homeline single-pole, double-pole, and tandem breakers. UL Listed and CSA approved.
