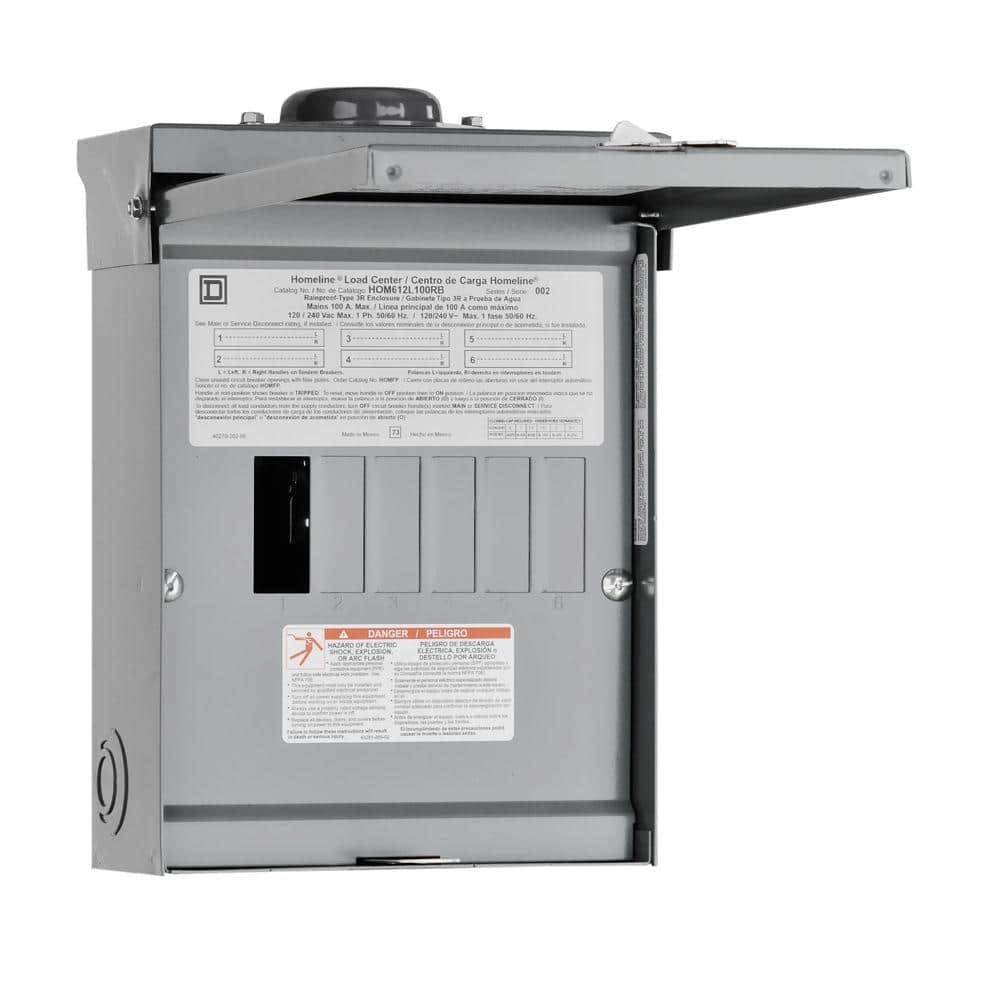

SQUARE D HOMELINE 100A MAIN LUG LOAD CENTER - 6-SPACE, 12-CIRCUIT RAINPROOFSquare D Homeline plug-on neutral load center provides reliable power distribution with 100-amp capacity in a 6-space rainproof enclosure for outdoor installation. The main lug design makes it ideal for use as an outdoor subpanel.
- 100A, 120/240 VAC, single phase
- 6 spaces, 12 circuits maximum (with tandem breakers)
- 10,000 AIC short-circuit current rating
- Accepts wire sizes 14-4 AWG copper or 12-3 AWG aluminum
- Plug-on neutral design for fast AFCI/GFCI breaker installation
- Tandems accepted in all spaces
- Three ground bar mounting locations (left, right, bottom)
- Rainproof (NEMA 3R) cover for outdoor installation
Features tangential main service knockouts and feed-through construction. Compatible with all Square D Homeline breakers. UL Listed.
