6-CIRCUIT GENERATOR TRANSFER SWITCH
The Pro/Tran 2 is the next generation of Loadside™ manual
transfer switch by Reliance Controls. These indoor surface mount
transfer switches are designed for fast installation in residential and
commercial applications. The 16-inch flexible conduit whip attaches
easily to a knockout on the load center and all factory wires are
clearly marked and colored for identification. Simply select the
circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual. Pro/Tran 2
transfer switches feature a rugged powder-coated steel cabinet with six
combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable
circuit breakers. The 1-inch breakers allow a larger circuit size (max
of 1 x 30A double-pole), and installation of AFCI & GFCI breakers.
All models include a hinged detachable cover to help protect and finish
off the overall look of the product.
All models are UL Listed for
most brands of 1-inch interchangeable circuit breakers and can be easily
re-configured in the field for multiple double-pole circuits. The
Pro/Tran 2 still utilizes non-defeatable (break-before-make)
double-throw toggle switches. Many models feature new color-coded watt
meters to help balance and manage the generator load.

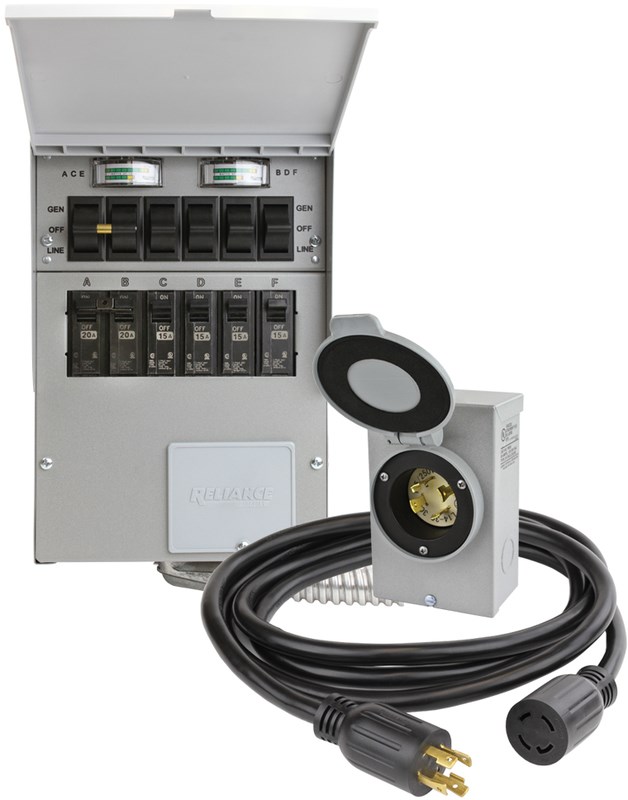

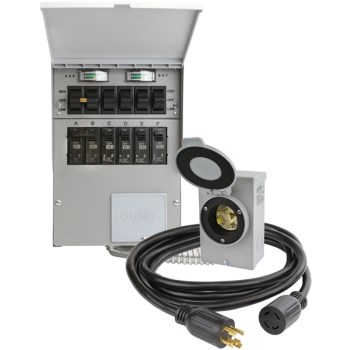

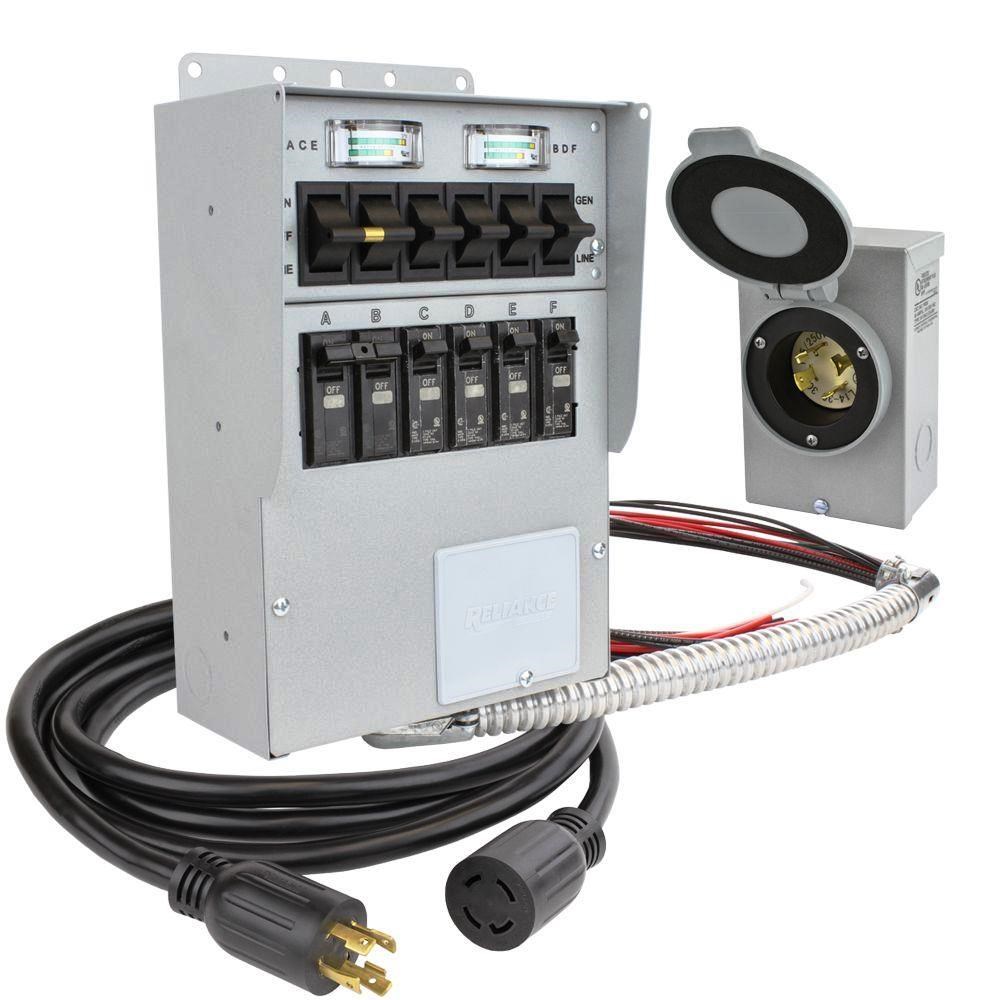

306CRK kit includes: model 306C six-circuit prewired transfer switch,
PC3010 power cord (10 feet, 10 AWG, L14-30 ends), and the PB30 outdoor
painted steel power inlet box (L14-30 inlet).- 120/240VAC - 30Amp
- Rugged powder-coated steel cabinet with 6 combination 1/2" & 3/4" knockouts
- (6) 1" interchangeable circuit breakers included
- UL Listed Standard 1007 ANSI/FPA70
- Design may very just slightly due to mfg updates
- 11.25" x 7.75" x 4.5"
