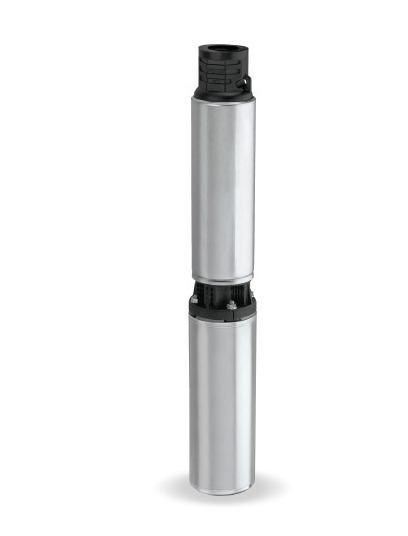

DEEP WELL PUMP
4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.
- For 4" inside diameter or larger wells
- Pumps from depths of 300ft
- Patented Floating Stack design for sand resistance and reduced sand locking
- Corrosion-resistant stainless steel pump and motor housing
- Body Construction: Stainless Steel
- Number of wires: 2 plus ground - 230v 60 Hz
- Pump wires direct to pressure switch - Requires no control box
- HP:: 1
- Performance Series: 10 GPM - Pumps 11.9 GPM at 150 ft. and Pumps 7.4 GPM at 250 ft.
- Max capacity: 15.6 GPM
- Stages: 7
- Operation Range:: 20' to 300'
- Maximum depth to water:: 300'
- Max PSI: 170 psi
- Discharge pipe size: 1-1/4" NPT
- Voltage: Recommended breaker: 20 amp
