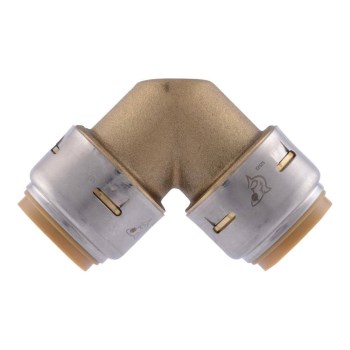

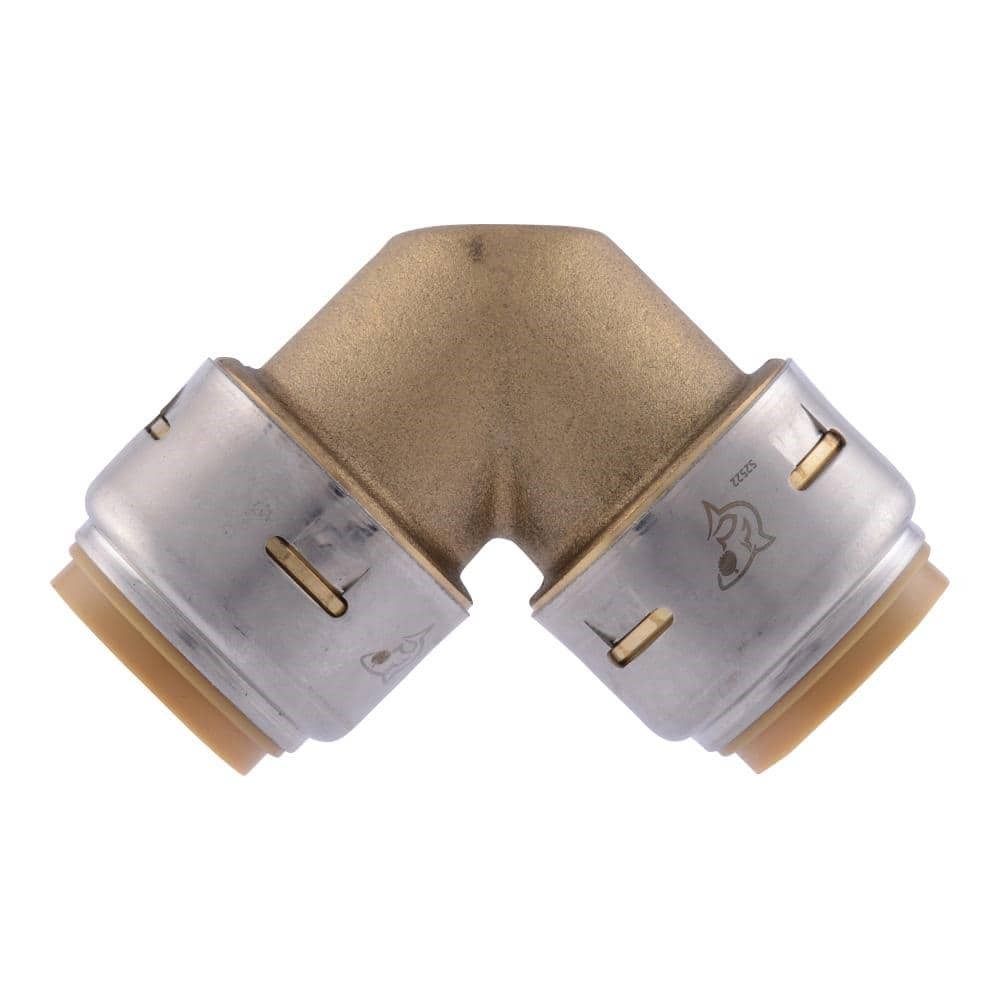

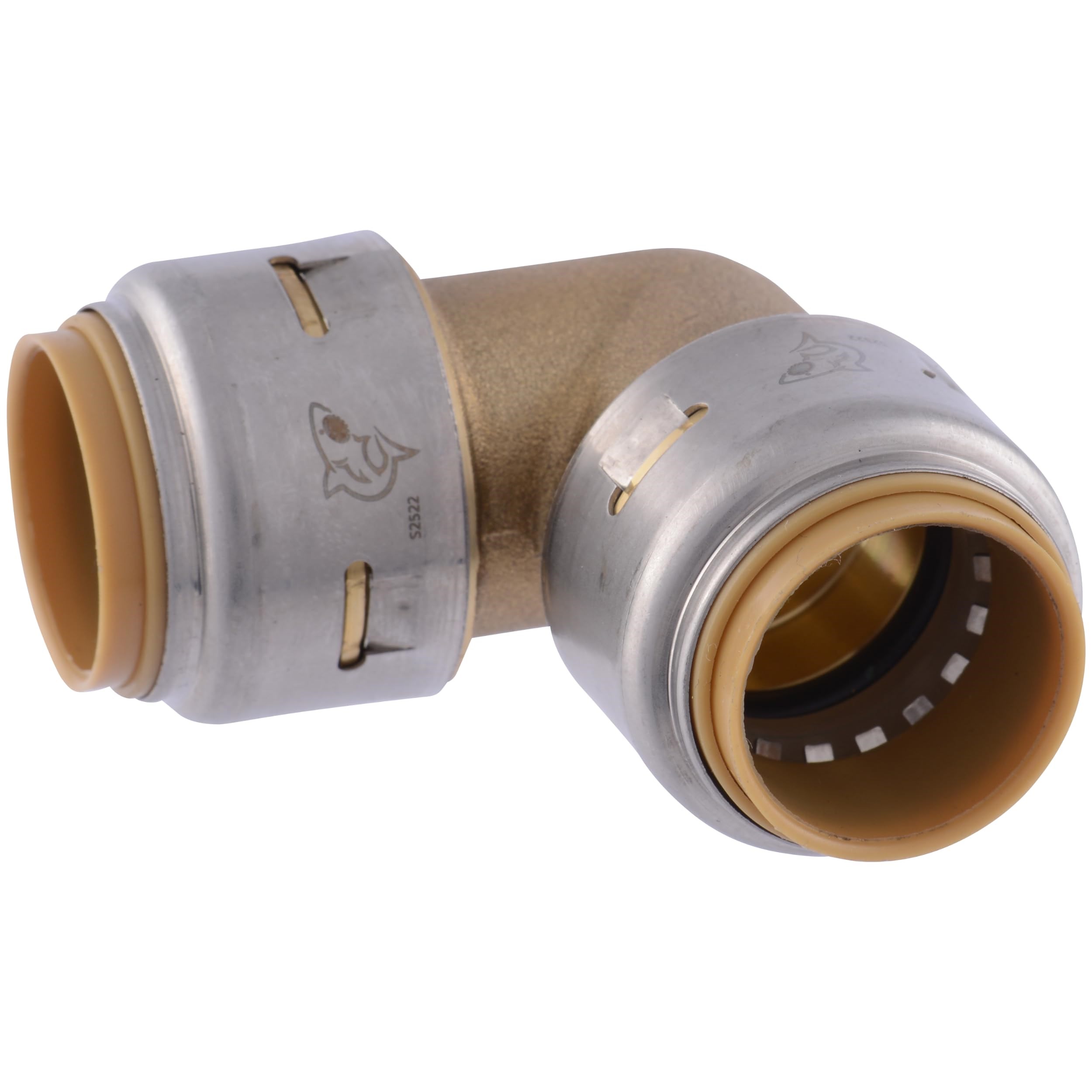

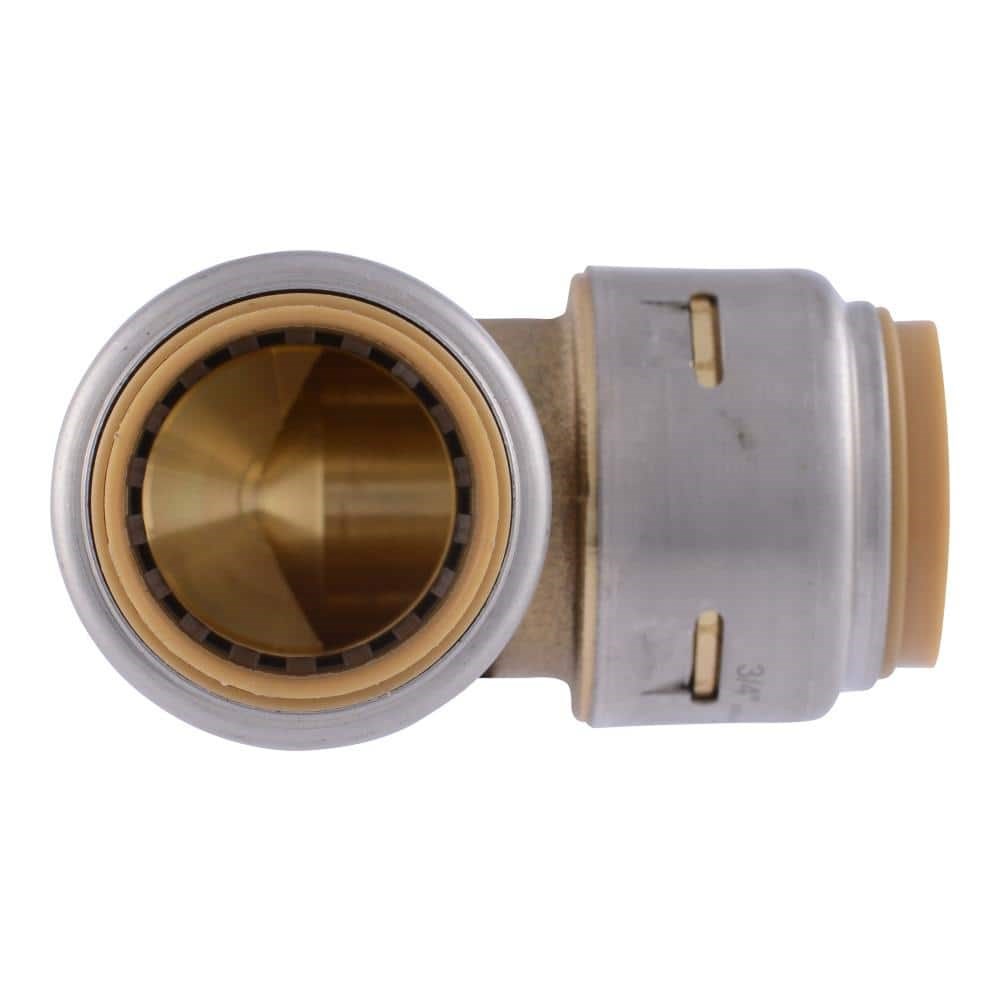

SHARKBITE MAX PUSH-FIT 90 DEGREE ELBOW - 3/4"The SharkBite MAX 90 degree elbow joins 3/4" potable water lines with no soldering, glue, clamps, or special tools - just push the pipe into the fitting until it bottoms out. The MAX cartridge cuts the insertion force in half compared to standard SharkBite fittings, which is a big help on overhead work and in tight cabinet spaces, while the stainless steel grip ring locks the joint with greater pull-out strength.
- 3/4" push-to-connect 90 degree elbow
- Joins PEX, copper (Type K, L, M), CPVC (CTS), PE-RT, and HDPE (SDR-9) pipe in any combination
- DZR (dezincification-resistant) lead-free brass body, certified to NSF/ANSI 61 and NSF/ANSI 372 for potable water
- Stainless steel grip ring with EPDM o-ring seal
- Rated to 200 deg F and 250 psi for hot and cold supply lines
- No PEX stiffener or tube liner required
- Can be rotated after installation for easy alignment
- Approved for behind-wall and underground use; pressure test immediately after install
- Backed by a 25-year warranty
Install Tip: Cut the pipe square, deburr the end, and mark the insertion depth before pushing the fitting on - the SharkBite depth gauge molded into the fitting body shows the target. Pushing short of the grip ring is the most common cause of a slow-drip joint.
Removal: Use SharkBite disconnect tongs or a disconnect clip to depress the release collar evenly while pulling the pipe straight back. The fitting is reusable if the grip ring is intact.
