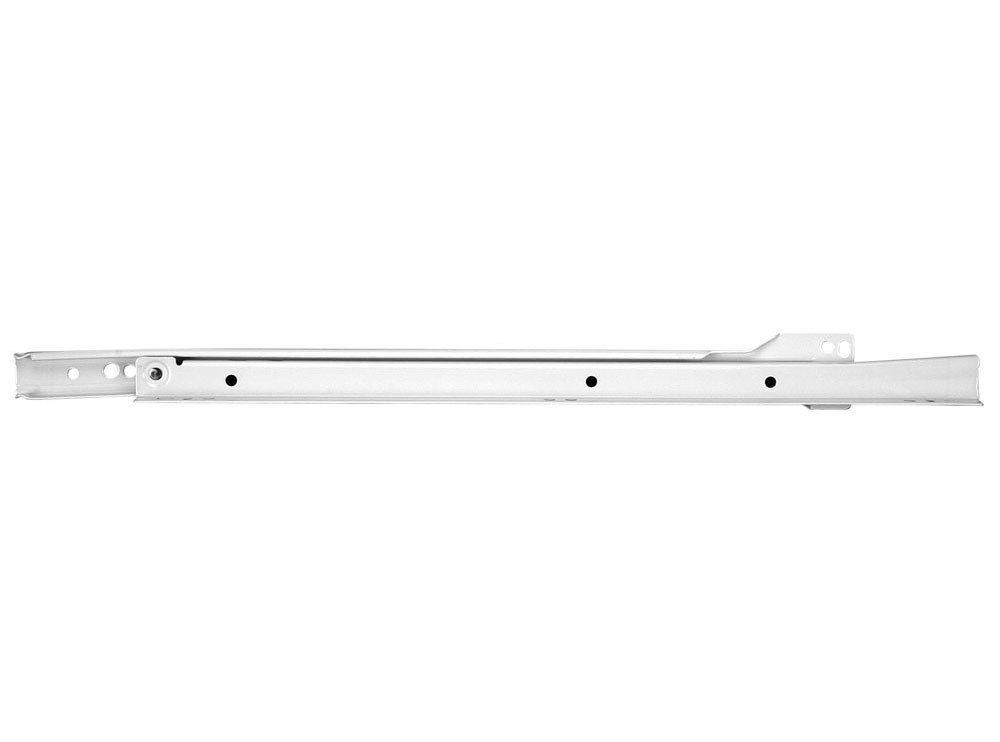

The Knape & Vogt 1805 series is a 75 lb class side-mount drawer slide with a built-in self-close mechanism that pulls and holds the drawer fully shut in the last inch of travel. The white epoxy-coated steel construction resists corrosion in kitchen, bath, and office environments, and the captive nylon roller bearings give quiet, consistent action under repeated daily use.

• 3/4 extension - drawer pulls out to about 75% of slide length
• 75 lb capacity (per pair) for medium-duty drawers
• Self-closing - last inch of travel pulls the drawer fully shut
• Side mount with 1/2" side clearance between drawer side and cabinet
• 32 mm Euro hole pattern - works with face-frame or frameless cabinets
• Lift-out disconnect for easy drawer removal during install or cleaning
• Positive in-stop and double out-stop, plus lock-open position
• Recommended drawer width: up to 18"
• White epoxy-coated steel
• Sold as a complete pair (left + right)
• Size: 24" (600 mm) slide length

Tip: Match the slide length to your cabinet interior depth - the slide should not extend past the cabinet back. Pre-drill mounting holes through the four-way adjustment slots before screwing down to keep the rails parallel. Use #6 x 7/16" pan-head screws (or shorter if the drawer side is thin) so longer screws don't break through the cabinet face. After install, test the self-close action with the empty drawer first - a smooth glide and clean close means the rails are square; if the drawer hesitates near the front, loosen the screws and realign before loading the drawer.
